Lightweight Fireproof Aluminum Honeycomb Panel For Interior Finishing
This all-aluminum sandwich panel adopts a three-layer composite structure: upper & lower aluminum alloy skins + aluminum hexagonal honeycomb core, bonded by high-strength environmental epoxy adhesive via hot-press integration. The honeycomb structure borrows aerospace load-bearing design, realizing high strength with only 30% weight of solid aluminum plates.
Advantages
- Lightweight & high strength: Low surface load, reduces building main structure burden; no sagging or deformation on large-area installation
- A-class non-combustible: 100% aluminum raw material, zero toxic smoke under fire, meets global construction fire codes
- All-weather durability: Fully waterproof, anti-rust, anti-mold, termite-free, ideal for coastal, humid and underground spaces
- Dual insulation: Honeycomb air cavity cuts heat transfer and absorbs noise, lowering building energy consumption
- Eco & recyclable: Zero formaldehyde, fully recyclable aluminum, meets green building standards

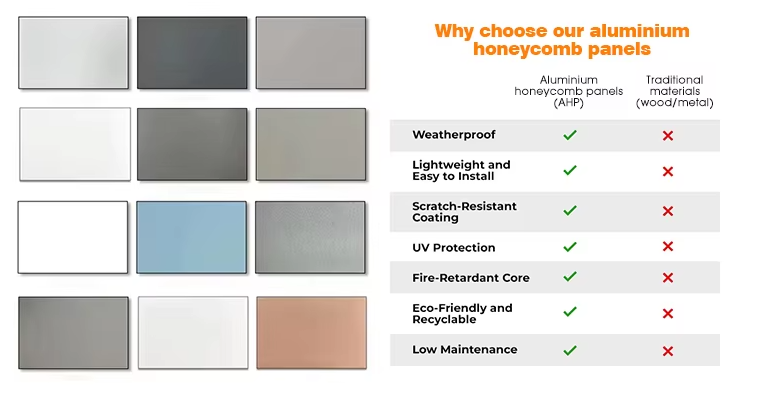

- Rich surface options: PVDF fluorocarbon coating, powder coating, wood grain transfer, brushed, mirror finish, customizable RAL colors
Key attributes
| Product Name |
Aluminum honeycomb panels |
| Brand Name |
Guilinmen |
| Usage |
Building curtain walls, interior finishing and all-aluminum furniture |
| Surface treatment |
PVDF painting/power painting/heat transfer/coating |
| Color |
RAL Color,wood-grain,customized colors |
| Core Structure |
Hexagonal Aluminum Honeycomb Core |
| Materials |
Panel:Aluminum 3003H24, 5052AH14/ honeycomb core: Aluminum 3003 |
| Thickness |
10mm – 50mm |
| Size |
Common size:1220mm×2440mm,1220mm×2750mm,customized size |
| Warranty |
More than 10 years |
| Production capacity |
100000 Square Meters/month |
| After-sale Service |
Technical support for installation |
| Characters of Honeycomb Aluminum |
|
| Parameter |
Specification |
| Aluminum Alloy |
AA3003 H18, AA5052 H18 |
| Total Panel Thickness |
4mm,8mm,10mm,15mm,25mm,Max 500mm |
| Aluminum Skin Thickness |
0.5mm,0.8mm,1mm,1.5mm,Max 3mm |
| Coating |
Fluorocarbon coating, Flim, Spray coating, Melamine paper PP. Flame-retardant sheet, PVDF, PE, Anodized, MillFinished, Embossed, Granite etc |
| Length |
2440mm, 3000mm, 3500mm, 5800mm, Max 10000mm |
| Width |
1000mm, 1220mm, 125Omm, 1500mm, Max 2200mm |

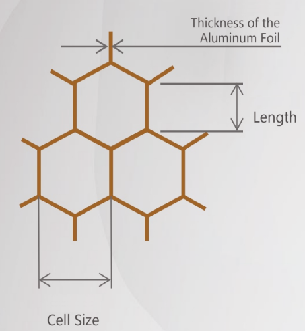

| Honeycomb Core Foil Thickness |
0. 02mm, 0. 04mm, 0. 05mm, 0. 06mm, 0. 08mm Max 0. 1mm |
| Honeycomb Core Cell Size |
licro-ApertureHoneycomb:1/10" (2. 6mm), 1/8" (3.17mm),1/6" (3. 47mm), 1/5" (5.2mm), Regular Honeycomb:1/4" (6. 35mm),1/3° (8. 47mm),3/8" (9.53mm),1/2" (12.7mm),3/4" (19.05mm),4/5" (20.32mm),1*(25.9m) |
| Honeycomb Core Cell Length |
Micro-Aperture Honeycomb:1. 5mm, 1. 83mm, 2mm, 2.5mm, 3mm,
RegularHoneycomb: 4mm, 5mm, 6mm, 7. 5mm, 1Omm, 12mm, 15mm |
| Edge |
Close Edge, Open Edge |

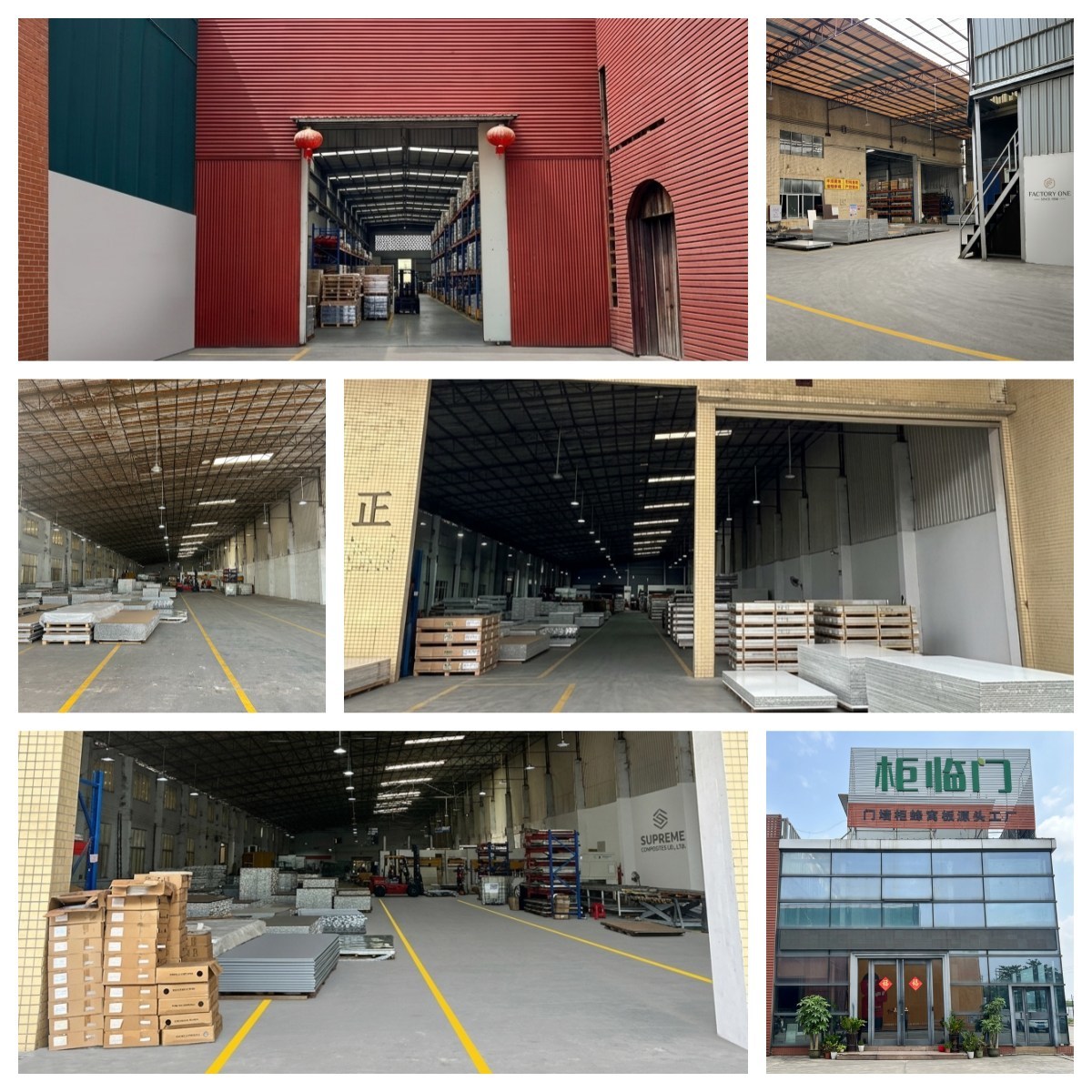

Overview of Our Factory
FAQ
Q1: Do you offer OEM and ODM services?
A: Yes. We provide professional OEM and ODM services, including customized panel sizes, thicknesses, aluminum alloy, surface finishes, colors, structures, logos and packaging. Our R&D and manufacturing teams can also support customized solutions for specific projects and applications.
Q2: What is your MOQ and can I order samples first?
A: Yes. We support samples and trial orders before bulk purchasing. MOQ depends on the panel specification, finish and customization requirements. We offer flexible solutions for distributors, wholesalers and project buyers.
Q3: What is the packaging of the goods?
A: We apply a protective film to the product surface, then wrap it with foam, and finally place it in a wooden frame.
Q4: What is your payment term?
A: We accept the payment terms: T/T, L/C, FOB, CIF.
Q5: What are the transportation methods?
A: Ocean Shipping and railway transportation. Feel free to select the packaging and shipping options that best meet your specific requirements, ensuring a secure and efficient delivery of our aluminum plates.
Q6: Can I get a sample?
A: Yes, we can provide a free standard-size sample and the color board, but the delivery cost should be paid by you. For customized or large-size samples, you should bear both the sample cost and delivery cost
Q7: How long does it take for an order to be shipped?
A: It will take approximately 10-15 days. It depands on the quantity of the order.
